Bubble Washing Machine for Fruits and Vegetables Cleaning
The bubble washing machine is a core piece of cleaning equipment for food processing factories. It effectively cleans fruits, vegetables, and raw materials for sauce, juice, potato chips, and frozen vegetable production lines. As a fruit and vegetable washing machine, it replaces manual cleaning—saving time, labor, and water. Our industrial bubble washing machine has been exported to the USA, the UK, Poland, Bulgaria, and other countries worldwide.
Request Solution for My Business

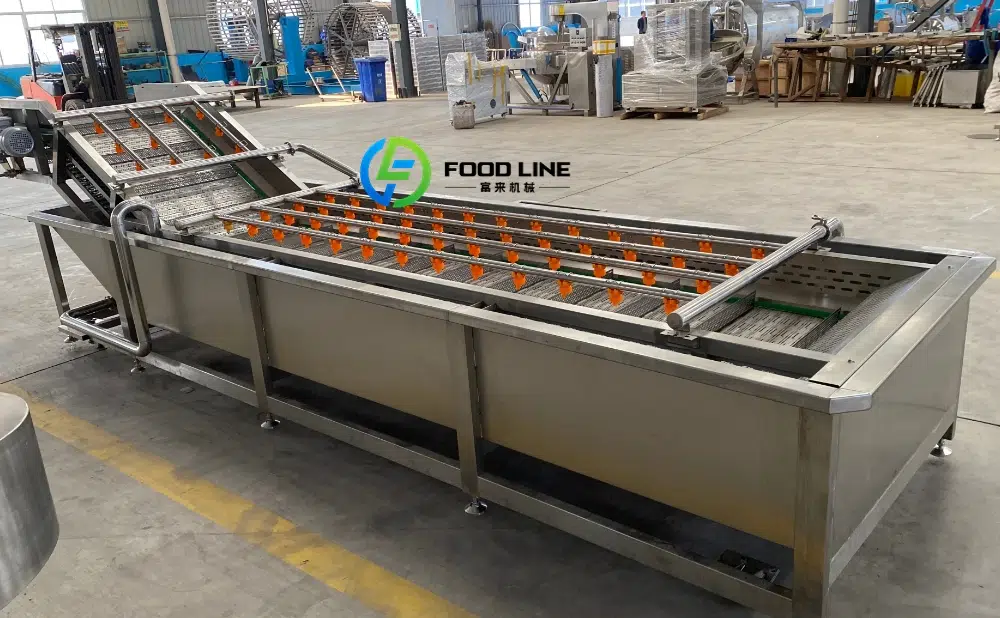

fruits and vegetables bubble washing machine
Product Parameters of Bubble Washing Machine
Model
Dimension (L×W×H, mm)
Power (kW)
Capacity (kg/h)
Weight (kg)
Voltage
FL-2500
2500×1000×1300
4.45
500
400
220V/380V
FL-3000
3000×1200×1300
5.25
800
600
380V (custom)
FL-4000
4000×1200×1300
6.6
1000
700
380V/440V
FL-5000
5000×1200×1300
8.3
1500
900
380V/220V
FL-6000
6000×1200×1300
9.4
2000
1100
Customizable
Request Brochure or Catalog

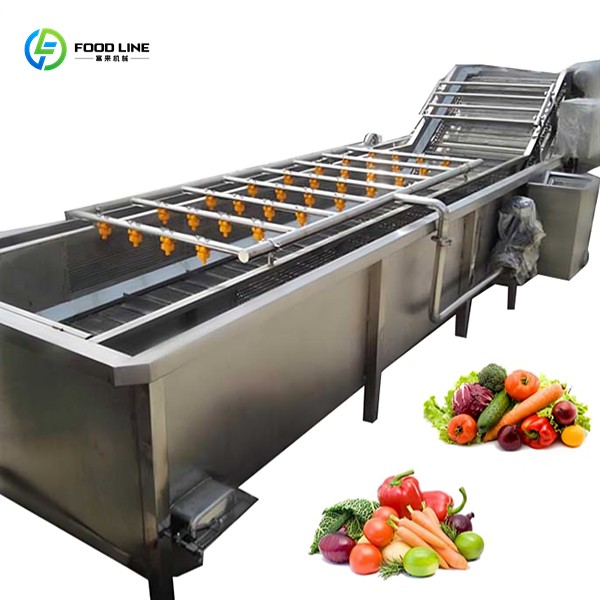

industrial fruit cleaning machine

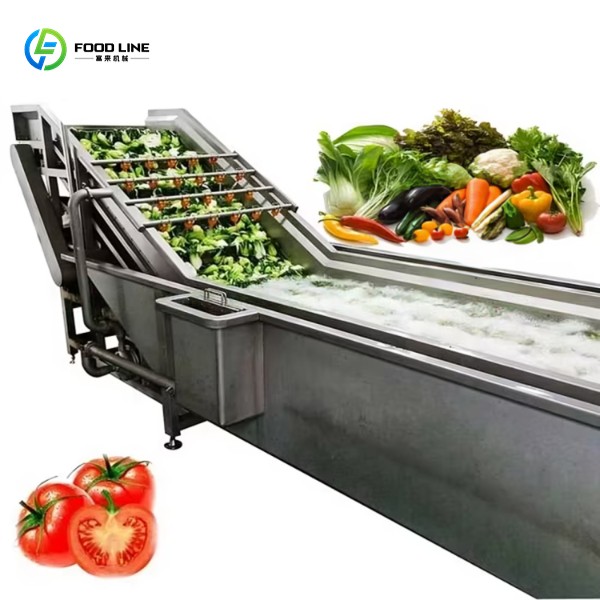

industrial vegetable washing machine
Wide Applications of Fruit and Vegetable Washing Machine
Fruit & Vegetable Processing Line: For pre-washing fresh produce like leafy greens, root vegetables, and fruits before cutting, freezing, or packaging.
Sauce Production Line: Used at the front end of sauce manufacturing to clean raw ingredients such as tomatoes, chili, garlic, and berries before crushing and cooking.
Fruit Juice Production Line: Pre-cleans apples, oranges, berries, and other juicing fruits to eliminate surface dirt, pesticide residues, and microbes before crushing and pressing.
Pet Food Production Line: Washes vegetable and fruit ingredients used in premium pet food formulations before further processing.
Seafood Processing Line: Removes sand, mud, and impurities from shrimp, shellfish, and other aquatic products without damaging delicate textures.
French Fries / Potato Chips Production Line: Removes starch and impurities from potato slices/strips before blanching and frying, ensuring crisp texture and extended frying oil life.

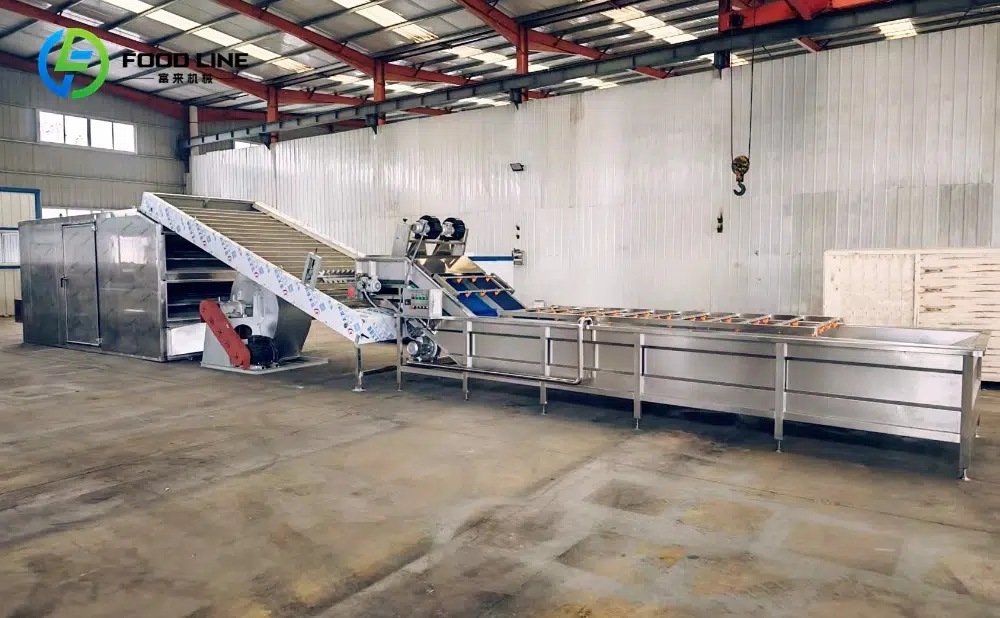

complete bubble washing and air drying line
Request Solution for My Business
How Does A Bubble Cleaning Machine Work?
The bubble washing machine uses a 3-step process to ensure deep cleaning:
1. Bubble Tumbling: A built-in bubble generator creates high-pressure air bubbles. These bubbles lift and produce off the conveyor belt, making them roll and spin. This loosens dirt, sand, and pesticide residues without scratching the surface.
2.Water Circulation: A separate filter tank traps sediment and debris. Clean water is recycled back into the machine—cutting water usage by 80% compared to manual washing.
3. High-Pressure Spray: After the bubble wash, the product moves to a spraying section (powered by a conveyor mesh belt). Clean water sprays at high pressure to remove any remaining floating residues.
The entire process of the machine’s operation is automatic. You just load produce and adjust the belt speed via a VFD (Variable Frequency Drive) for different items.
Get Videos & Shipment Details
Key Features Of Fruit And Vegetable Washing Machine
Dual Cleaning System: Combines bubble tumbling and high-pressure spraying. Perfect for leafy vegetable washing needs—removes dirt from tight spaces without tearing leaves.
Overflow & Sewage Outlet: Floating debris (like leaf stems) flows out through the overflow tank. Sediment is discharged via a dedicated sewage outlet—ensuring no recontamination.
Adjustable Belt Speed: A VFD lets you control the conveyor speed (0.5–10 minutes per cycle). This works for soft items like tomatoes (at slow speed) and hard root vegetables (at faster speed).
Food-Grade 304 Stainless Steel: The entire washing machine is made of rust-resistant 304 stainless steel. It meets international food safety standards—safe for direct contact with fruits and vegetables.
Water Recycling System: A filter tank separates impurities from water. Recycled water is reused in the bubble tank, reducing operational costs.
Get Factory Quote | WhatsApp/Tel: +8613838509601

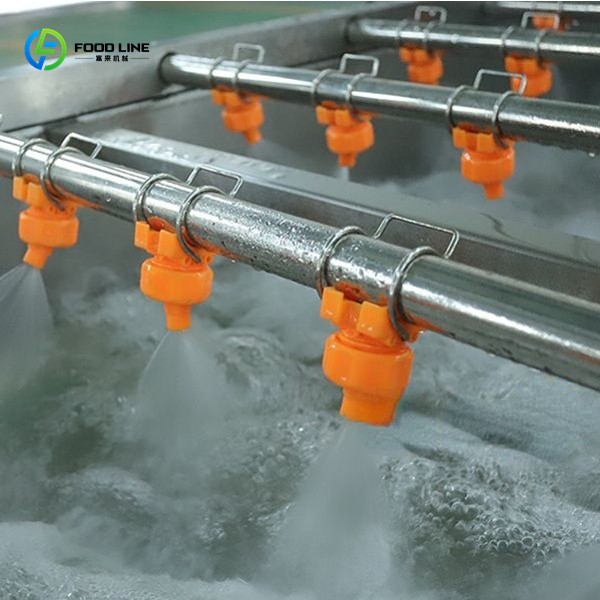

stainless steel spray nozzles

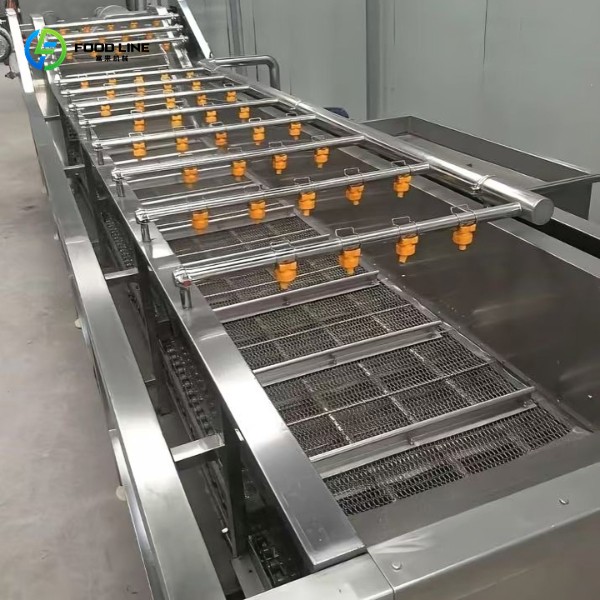

full stainless steel build
Top Advantages Of Bubble Type Washing Cleaning Machine
Higher Efficiency: The washing machine cleans up to 2,000 kg of produce per hour, far faster than manual cleaning. Ideal for industries that need to handle large quantities of fruits and vegetables.
Cost Savings: The water recycling system cuts water bills by 80%. The automated walking process also reduces labor costs—no need for a team of cleaners.
Consistent Cleanliness: Manual washing leads to uneven results. Our bubble cleaning machine removes 99% of dirt and residues every time—critical for meeting food safety regulations.
Gentle On Produce: The bubble tumbling method ensures no damage to delicate items (e.g., strawberries, cherries). This reduces product waste and preserves shelf life.
Get Factory Quote | WhatsApp/Tel: +8613838509601

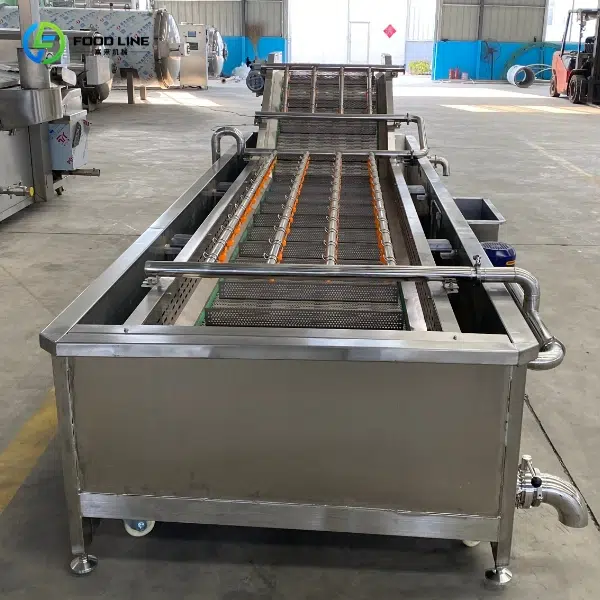

stainless steel bubble cleaning machine

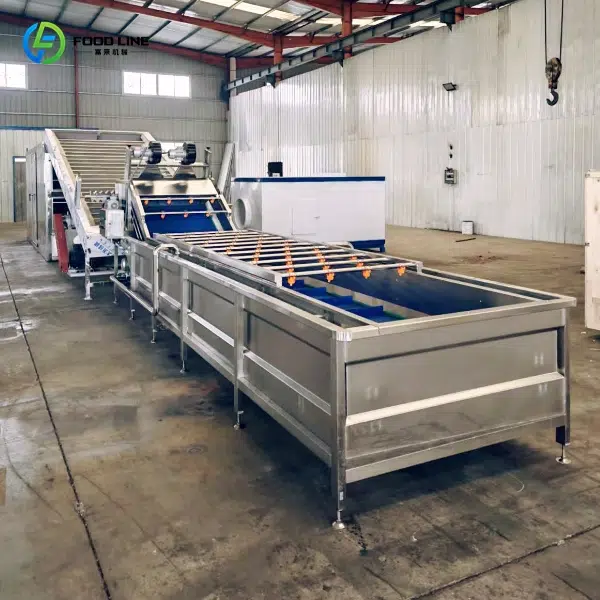

fruit and vegetable washing and drying line
FAQs of Bubble Cleaning Machines
Q1. What types of produce can the machine handle?
This bubble washing machine is designed to clean virtually all types of fruits and vegetables, such as strawberries, leafy greens, potatoes, and carrots.
Q2: How does the bubble washing machine improve cleaning efficiency?
It uses air bubbles to agitate produce, removing 99% of contaminants without detergents.
Q3. How much water does the bubble washing machine use?
The water recycling system uses 80% less water than manual washing.
Q4. Is the washing machine easy to maintain?
Absolutely. The 304 stainless steel surface is easy to wipe down. The filter tank is removable, and you can clean it in 5 minutes.
Q5. Can I customize the bubble cleaning machine for my business?
Yes. We offer customization like Ozone sterilization (for pesticide residue removal), different voltage options (220V/380V/440V), and larger conveyor belts.
