Gummy Counting Machine For Soft Candy Bottling 80 Bottles/Min

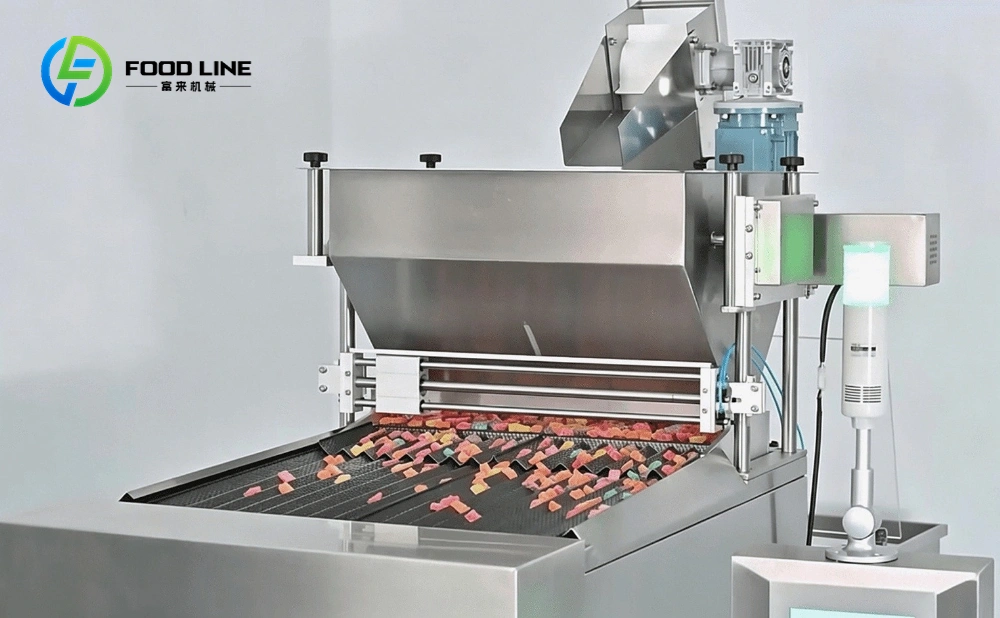

automatic candy vitamin gummy counting machine

Our high-speed gummy counting machine with PLC control is designed for accurate bottling of soft candies. It handles 3–40 mm gummies, gummy bears, soft candies, and vitamin gummies efficiently. This confectionery counting machine works with various bottle sizes for seamless production. We have exported this candy counting machine to the USA, Canada, Germany, the UK, Australia, the Philippines, and other countries.

Request Solution for My Business

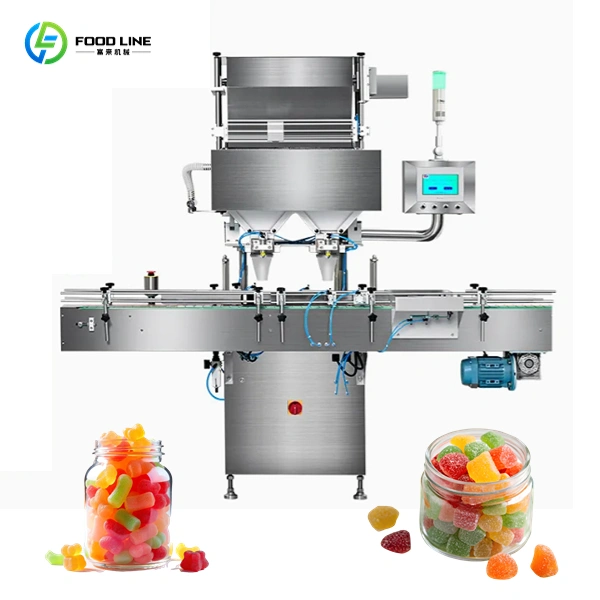

gummy counting machine for bottling — gummy counting machine

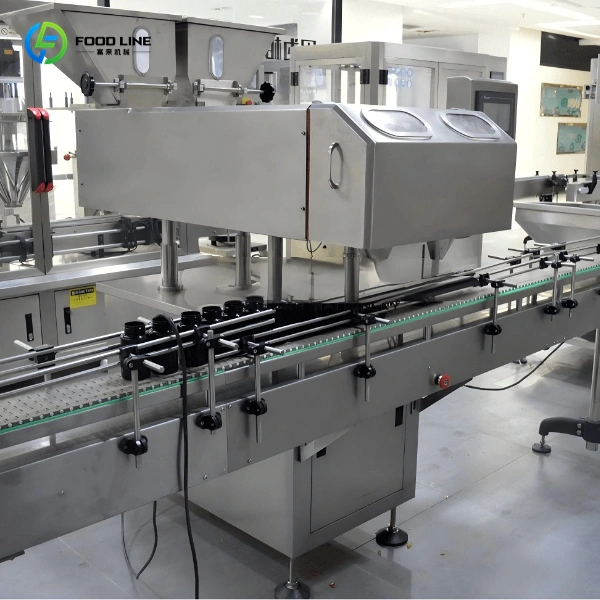

Parameters of the 16 Channel Gummy Counting Machine

Model	FL-16R Gummy Candy Counting Machine
Capacity (Bottles/min)	80 (based on 60 tablets per bottle)
Accuracy	>99.97%
Counting filling materials	Various soft candies 3-40mm
Applicable bottle type	Bottle diameter 25~75mm, height ≤240mm
Power supply	AC380V 3P 50/60HZ (Customized)
Total power	2.2KW
Air consumption	120L/min
Air pressure	0.4 ~ 0.6Mpa
Weight	650kg
Machine dimensions (LWH)	1,200×1,550×1,750mm

Request Brochure or Catalog

How the Soft Candy Counting Machine Works

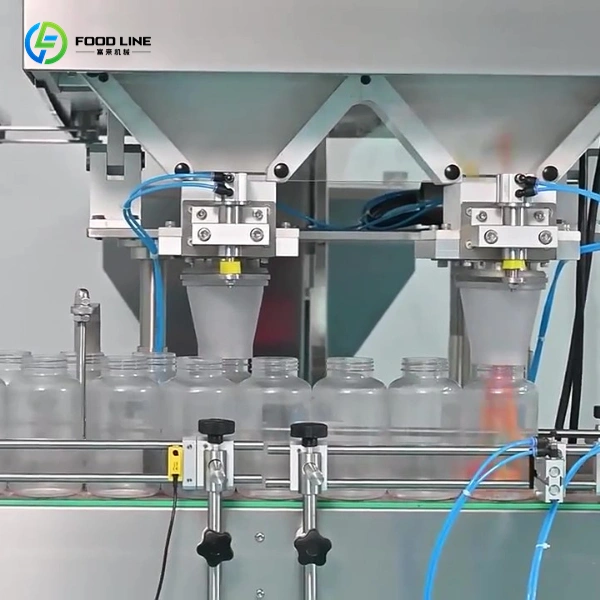

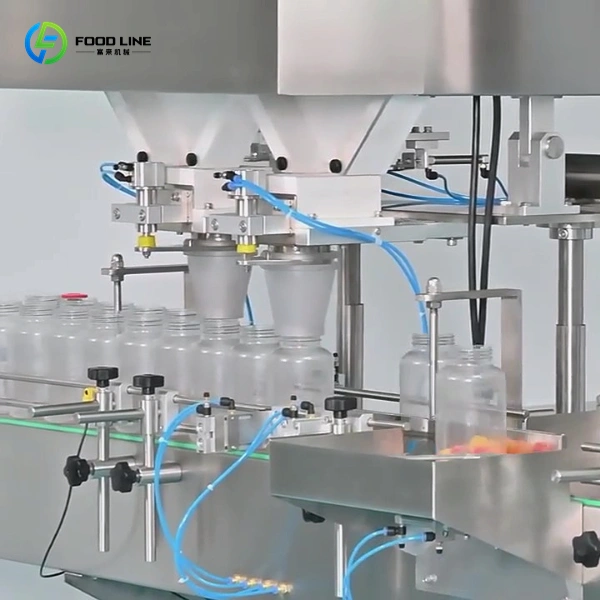

The machine uses sensors, vibration, and conveyor systems to separate and count candies. First, candies move into the silo with anti-stick features to prevent clumping. Next, the 16-channel system counts each candy accurately as they pass through. Once the required number is reached, the gummy candy counting and filling machine dispenses candies into waiting bottles. The conveyor moves filled bottles forward, and the process repeats continuously.

Get Videos & Shipment Details

Features of the Automatic Gummy Counting Machine

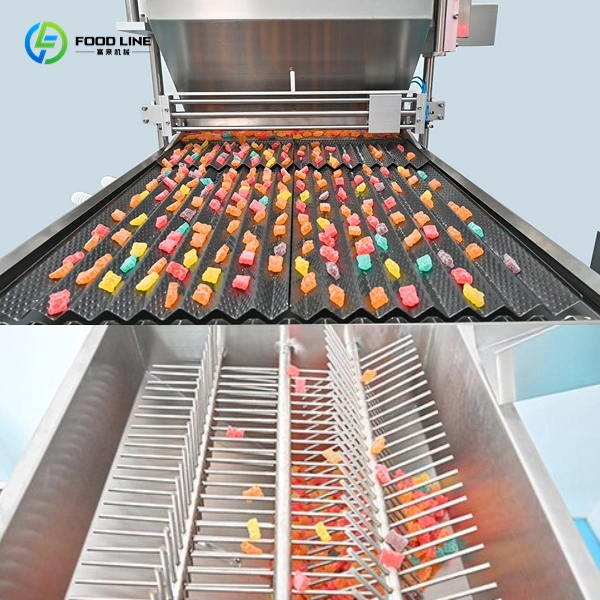

Enhanced Hopper Design: The inner mace design separates piled candies and avoids clumping inside the gummy counting machine.
Custom Separation Rollers: Special rollers fit candy shapes well and stop sticky candies from sticking together.

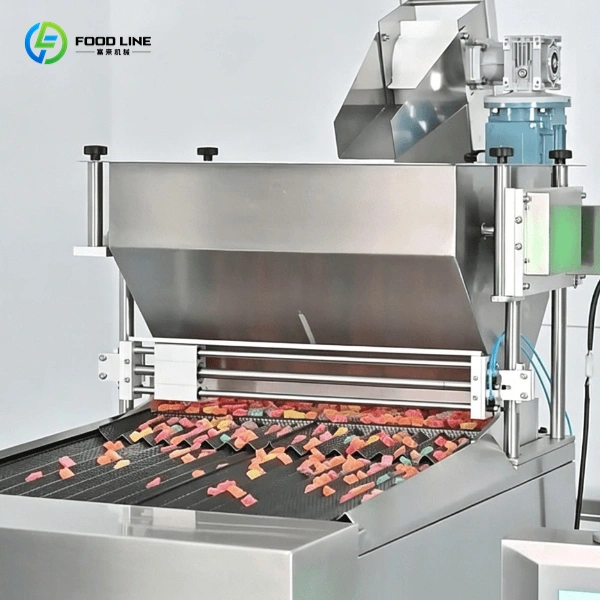

Food Grade Teflon Coating: All material contact parts use Teflon to keep smooth feeding for soft candy processing.
Anti-Blockage PTFE Port: Optimized PTFE inlet prevents jams and keeps the gummy candy counting line running non-stop.

Get Factory Quote | WhatsApp/Tel: +8613838509601

Advantages Over Standard Candy Filling Machines

Super High Counting Accuracy: This counting and filling machine reaches over 99.97% accuracy and reduces unnecessary product waste.
Stable High Speed Output: The high speed gummy counting machine supports 80 bottles per minute to meet mass production demands.
Flexible 16 Channel Design: The 16 Channel gummy counting machine adapts to multiple candy sizes without frequent part replacement.
Low Maintenance & Easy Cleaning: Teflon-coated parts reduce residue buildup and save daily cleaning and maintenance time.
Customizable for Your Production Line: We can adjust the machine’s speed and configurations to match your factory’s specific bottling and counting needs.

Get Factory Quote | WhatsApp/Tel: +8613838509601

FAQs About Gummy Counting Machines

Q1: What types of candies can this gummy counting machine process?

This machine handles a wide range, including standard gummy bears, vitamin gummies, pectin gummies, and soft candies sized between 3mm and 40mm.

Q2: Is this machine suitable for sticky or sugar-coated candies?

The specialized Teflon coating and anti-stick hopper design make it perfect for sticky items like sugar-coated or gel-based candies.

Q3: Can I integrate this candy counting machine for bottling into my existing line?

Absolutely. It features standard conveyor interfaces and can be easily adapted to connect with capping, labeling, and sealing machines.

Q4: Do you offer customization options for international voltages?

Yes, we provide full customization, including power supply adjustments to meet specific regional standards worldwide.
