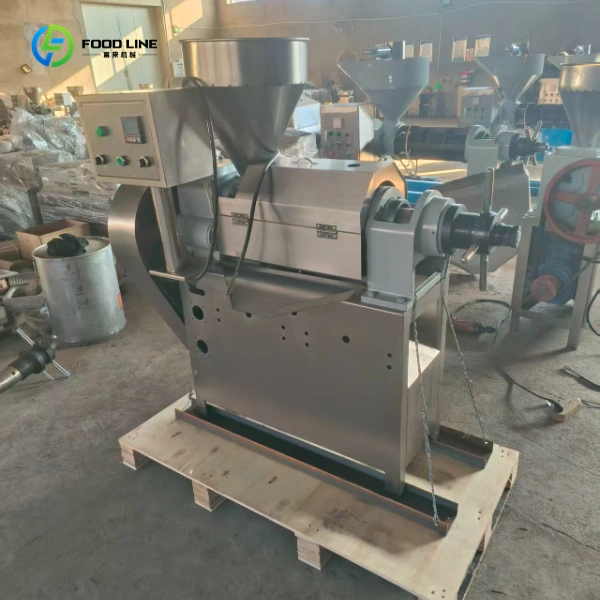

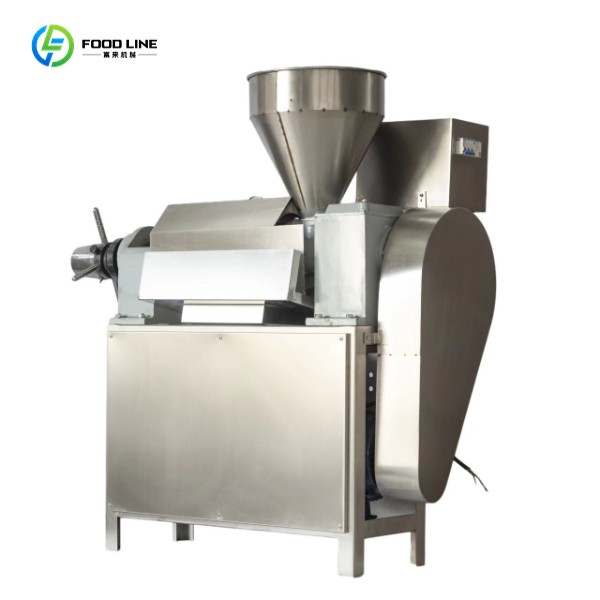

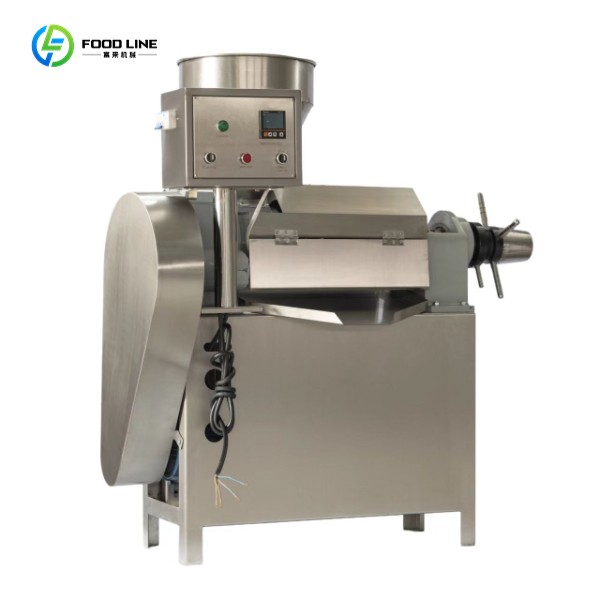

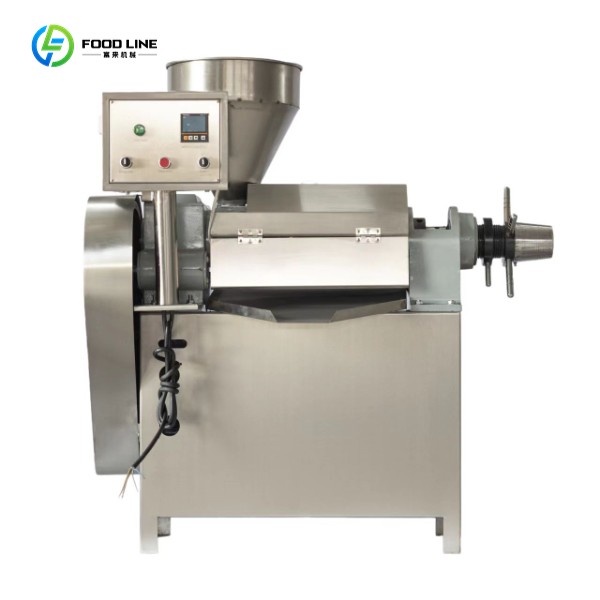

Screw Press Oil Extraction Machine for Various Seeds

This screw press oil extraction machine is designed for continuous, high-volume production, transforming over 20 varieties of oil seeds and nuts into premium-quality oil. It is the ideal Industrial oil extraction machine for small to medium-scale processing plants, farms, and entrepreneurs seeking to produce their own oils with maximum yield and purity.

Product Parameters of Screw Press Oil Extraction Machine

Specification	Details
Model	FL-85 Screw Oil Press Machine
Voltage	380V/50HZ
Weight	280kg
Dimensions	125*60*138cm
Motor Power	5500W
Total Power	7000W
Hourly Capacity	80-120kg/hour

The Working Principle of Screw Type Oil Pressing Machine

This unit operates as a screw press oil extraction machine. Its process is both efficient and straightforward. First, prepared oil seeds are fed into the machine’s hopper. The core of the system is a rotating screw shaft inside a sturdy pressing chamber. As the screw turns, it grabs the raw material and pushes it forward. Furthermore, significant friction occurs between the material, the screw, and the chamber walls. This friction generates heat, which is supplemented by built-in electric heaters. The combination of intense pressure and controlled heat squeezes out the oil from the seed cells. The oil then flows out through filters, while the remaining dry cake is expelled at the outlet. This continuous dynamic process ensures high oil yield and smooth operation.

Product Features of Automatic Screw Oil Press Machine

Compact & Robust Build

The oil making machine features a space-saving design for easy installation in various workshop layouts. Its main construction uses high-grade stainless steel, enhancing durability and allowing for easy, hygienic cleaning.

Enhanced Core Screw Shaft

We have upgraded the screw shaft with a special hardening process. This significantly increases its wear resistance and hardness, directly translating to a much longer operational lifecycle and consistent performance even under continuous use.

Advanced Screw Assembly

The precision-engineered screw profile ensures efficient, single-pass extraction. Raw materials typically require only one-time squeezing to release their oil, which streamlines the process and saves energy.

Flexible Pressing Capability

This versatile oil press extractor machine can process both raw and roasted oil seeds, providing operational flexibility. Integrated heaters optimize the pressing temperature for different materials.

Comprehensive Safety

This industrial oil extraction machine features a fully enclosed protection design. This safety guard prevents accidental contact with moving parts, ensuring a secure working environment for all operators.

Advantages of Our Industrial Oil Press Machine

Enhanced Productivity: This industrial oil press machine has a strong output of 80-120 kg per hour and the ability to handle multiple seed types. It significantly boosts your production capacity.

Superior Oil Quality: The controlled pressing process with adjustable heat helps denature proteins, leading to clearer oil and a dry cake residue of ideal consistency (1.5-2.0mm thick).

Lower Operating Costs: The durable stainless steel body and hardened screw shaft drastically reduce maintenance needs and extend the machine’s lifecycle.

Wide Application Range: This highly effective oil extraction machine expertly processes mustard, sunflower, sesame, coconut, almonds, walnuts, and many more, offering incredible business flexibility.

FAQ:

Q1: What types of oil seeds can this machine process?

This screw type oil press machine is highly versatile. It is widely used for extracting oil from over 20 kinds of seeds and nuts, including peanut, soybean, sunflower seed, sesame, rapeseed, coconut, almond, and walnut.

Q2: Does the machine need pre-heating before starting?

Yes, for optimal results, it is recommended to pre-heat the pressing chamber for a few minutes using the built-in heaters. This brings the system to the ideal temperature for efficient oil extraction, especially for raw seeds.

Q3. Can this oil pressing machine handle both raw and roasted oil seeds?

Absolutely. It has a dual pressing function: it can extract oil from both raw and roasted seeds, as it comes equipped with heaters to meet different processing needs.

Q4. Is this industrial oil extraction machine easy to maintain?

Yes. It has a compact design and simple structure, so installation, operation, and daily maintenance are all easy to carry out.

Q5: Is it safe for operators to use?

Absolutely. Safety is a primary feature. The machine is equipped with a fully enclosed protection system that covers all rotating and pressing components, preventing accidental contact during operation.
