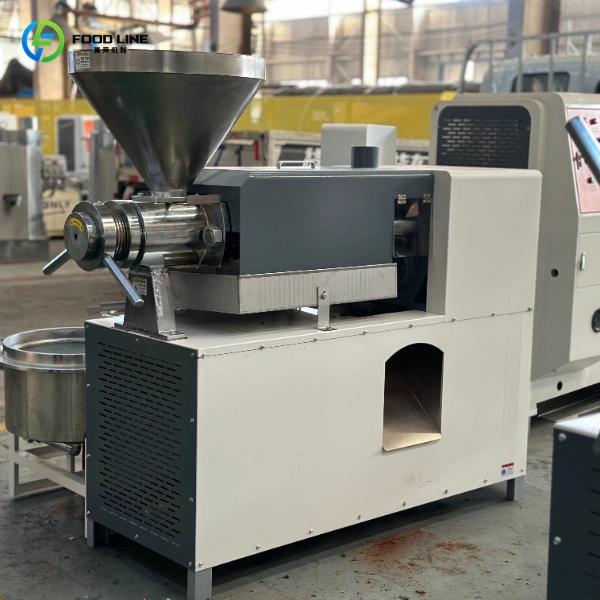

Our newly upgraded screw oil press is a high-efficiency, durable machine designed for extracting oil from various oilseeds and nuts, including palm, coconut, and groundnut. This oil extraction machine series covers different models with outputs from 80kg/h to 500kg, making it ideal for both small workshops and medium-scale processing plants. Already trusted by businesses worldwide, our screw oil press machines have been successfully exported to Spain, Nigeria, Poland, Thailand, Cameroon, Tanzania, and more Asian countries.
Get Factory Quote | WhatsApp/Tel: +8613838509601
Key Specifications of Screw Oil Press Models
Parameter
Model FL-80
Model FL-120
Model FL-150
Screw Diameter
Φ 80 mm
Φ 120 mm
Φ 146 mm
Screw Speed
69 r/min
49 r/min
42 / 63 r/min (Dual Speed)
Main Motor Power
5.5KW
11 KW
30 KW
Heater Power
3KW
4 KW
4.7 KW
Capacity (Rapeseed)
80-120kg/h
260 – 400 kg/h
300 – 500 kg/h
Net Weight
445kg
980 kg
1100 kg
Dimensions (L x W x H)
1550x870x1580 mm
2060 x 1345 x 1570 mm
2700 x 2910 x 1635 mm

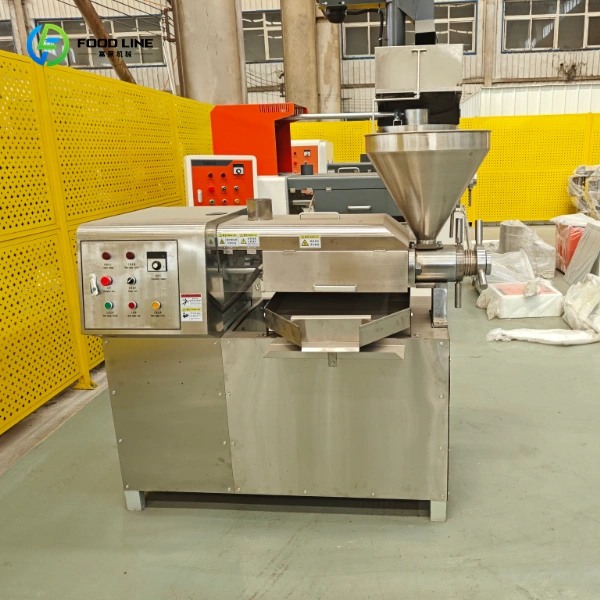

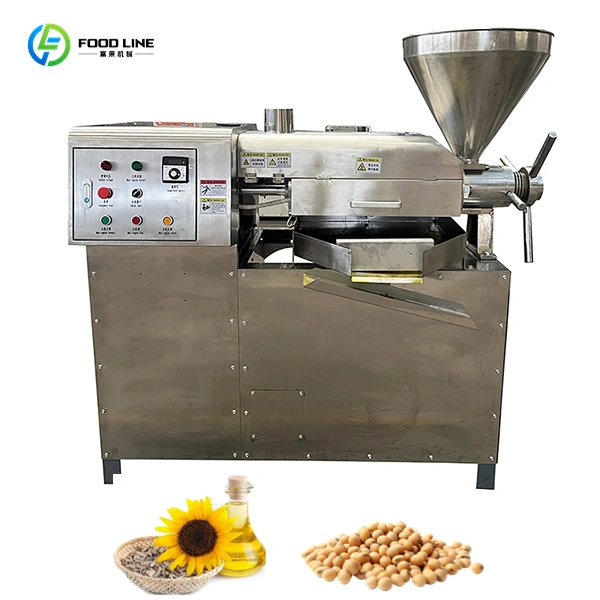

120kg/h FL-80 screw oil press

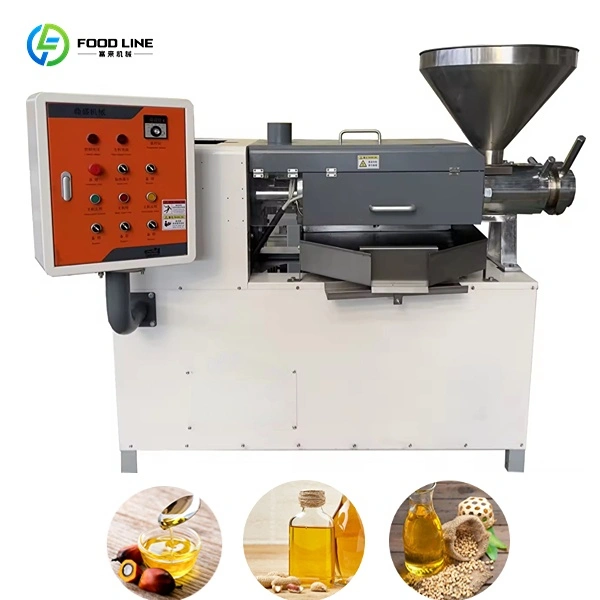

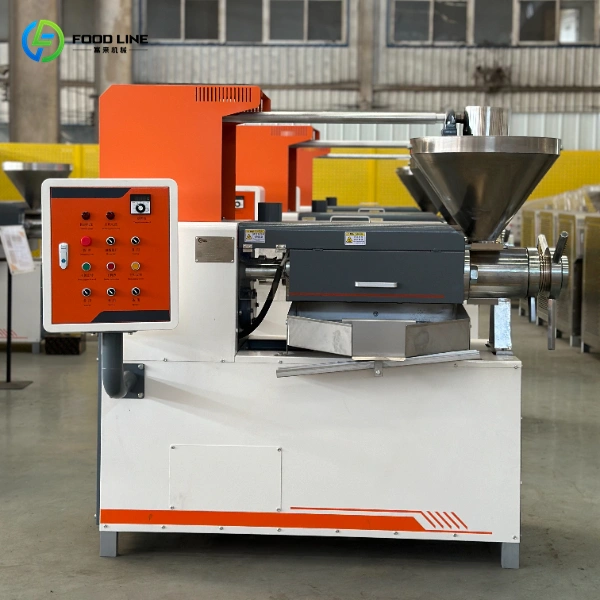

400kg/h FL-120 screw oil press

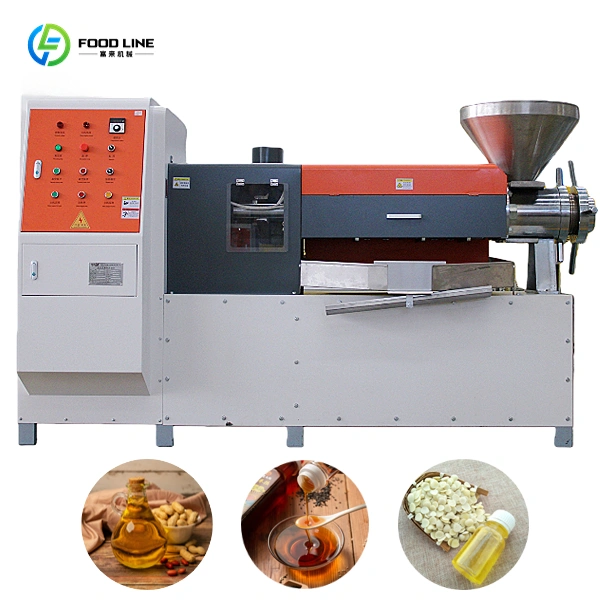

500kg/h FL-150 screw oil press
Get Factory Quote | WhatsApp/Tel: +8613838509601
How Does This Screw Oil Press Machine Work?
The screw oil press machine operates in a simple and continuous process. First, you feed cleaned oil seeds into the hopper. Then, the rotating screw inside the pressing chamber moves the material forward. Meanwhile, the built-in heater warms the seeds to improve oil yield. Next, high pressure builds up in the pressing cage, squeezing out the oil. Finally, the oil flows into a collection pan, and the leftover cake exits through the discharge port. This screw press machine for oil extraction runs smoothly with minimal manual intervention.
Get Factory Quote | WhatsApp/Tel: +8613838509601
Main Features of Our Screw Type Oil Expeller
Robust Construction: The frame is CNC-welded for perfect alignment, which makes the screw oil expeller stable and vibration-free during operation.

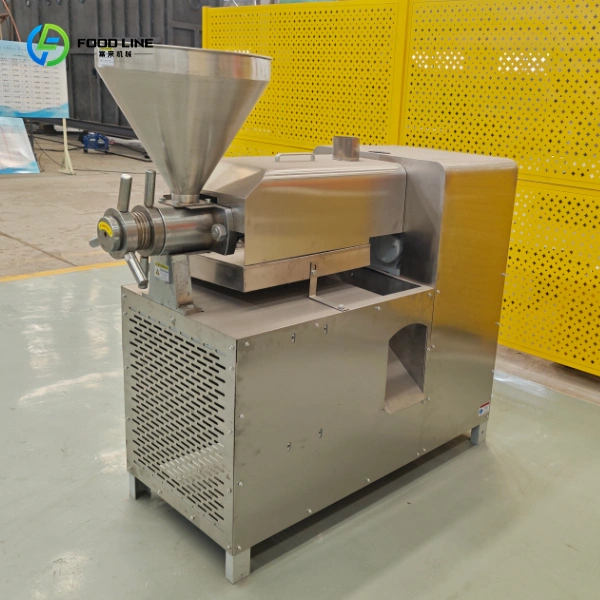

Food-Grade Contact Parts: All surfaces touching oil or seeds are stainless steel, so the oil pressing machine meets hygiene standards and is easy to clean.
Adjustable Cake Thickness: You can easily change the thickness of the cake using the handwheel, allowing flexibility for different materials.
Integrated Heating System: The electric heater improves oil fluidity, which helps the palm oil screw press machine achieve higher extraction rates.

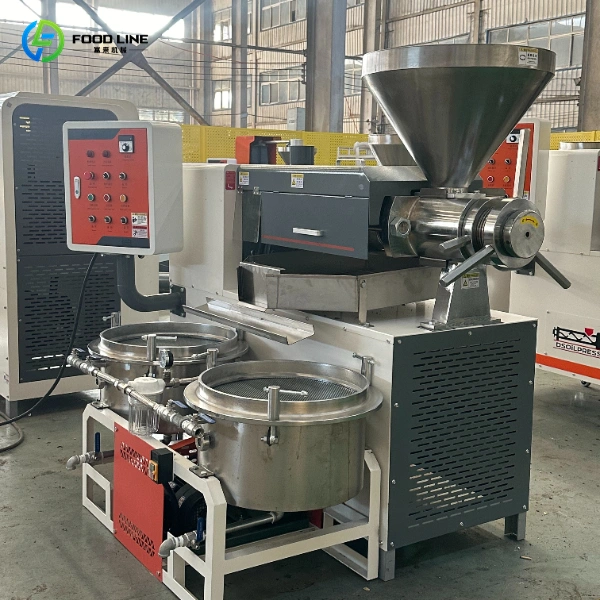

Vacuum Filtration Ready: The oil press machine can connect to a vacuum filter, which further clarifies the oil for a pure, market-ready product.
compact oil pressing machine
advanced electrical control box

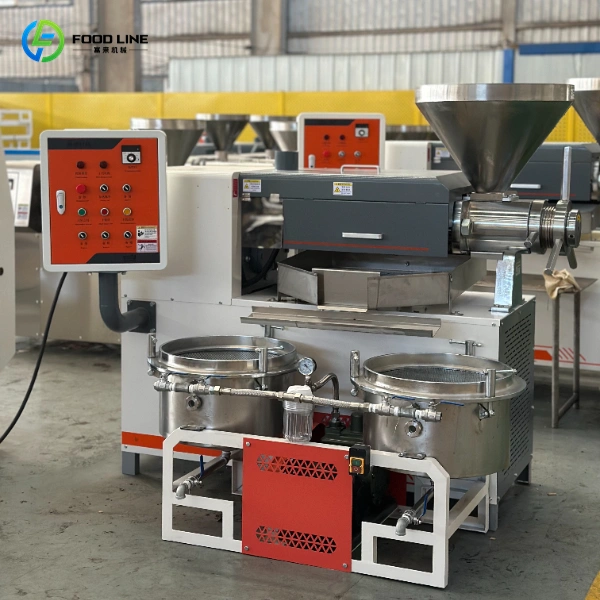

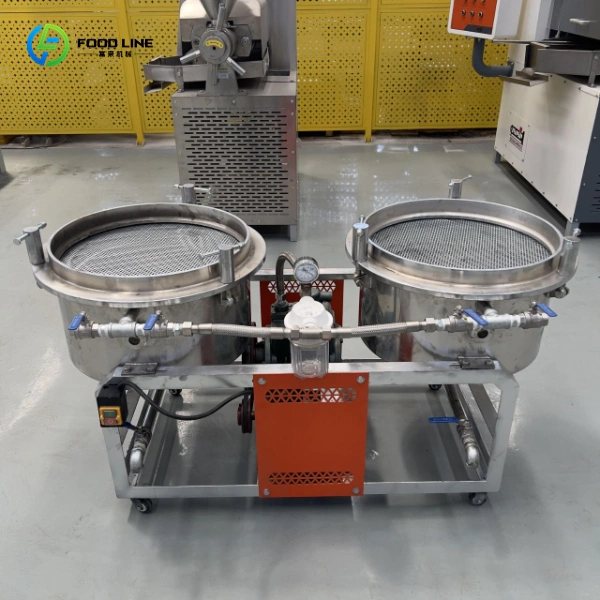

10L vacuum oil filter
Get Factory Quote | WhatsApp/Tel: +8613838509601
Advantages of the Screw Press Machine For Oil Extraction
High Oil Yield: The optimized screw design and heating system ensure maximum oil recovery from seeds, boosting your profit.
Enhanced Profitability: With its high throughput, this oil pressing machine significantly increases your daily output, directly boosting your revenue and shortening the investment payback period.
Easy Maintenance: We provideavailable spare parts like the full set of squeezing worms, ensuring your oil press machine runs smoothly with minimal interruption.
Durable Build: The powder-coated exterior and stainless steel interior make the oil press machine resistant to wear and corrosion.

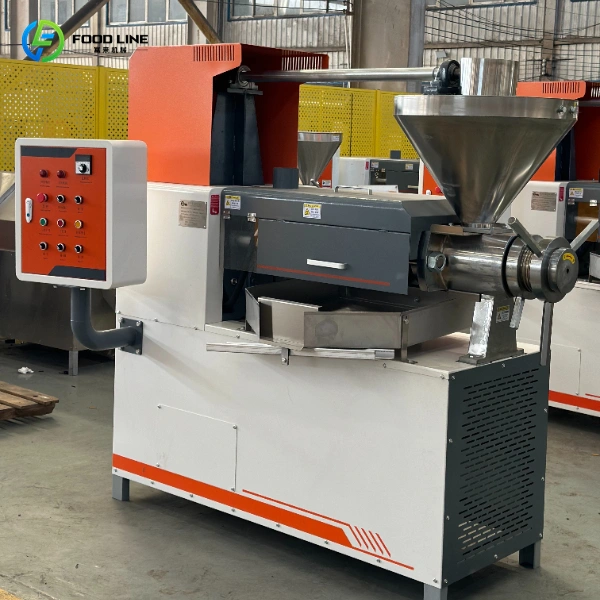

Versatile Use: It is a intergrated hot press and cold press oil machine, working well for palm fruit, coconut, groundnut, rapeseed, and more.
Get Factory Quote | WhatsApp/Tel: +8613838509601
FAQs of Oil Extraction Machines
Q1. What materials can this screw oil press process?
This screw oil press handles various oil seeds, including palm kernel, coconut, groundnut, sunflower, and soybean.
Q2.Can this machine work as a cold press oil machine?
Yes, it supports both hot and cold pressing. For cold pressing needs (like high-nutrition oils), simply turn off the heating device.
Q3. Can I get spare parts easily?
Yes, we offer complete spare part kits of oil making machines, such as pressing screws, bars, and cake outlets, for prompt replacement.
Q4. How pure is the oil after pressing?
The oil extraction machine usually comes with a vacuum filter that removes most impurities. For edible-grade oil, further refining might be necessary depending on your market standards.
