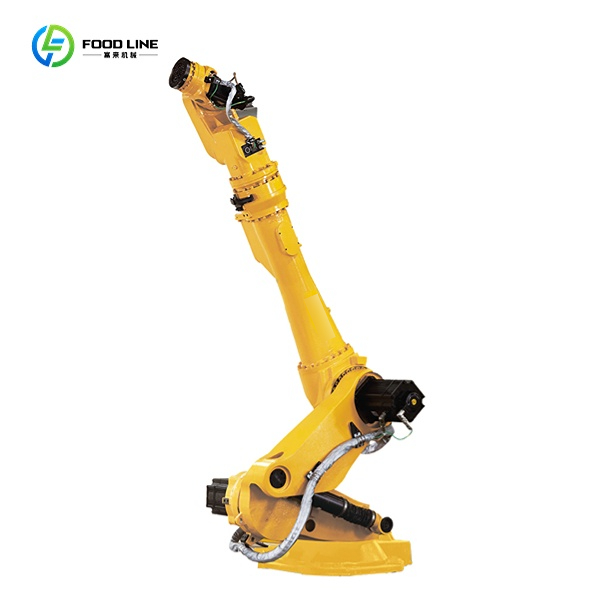

Industrial Palletizing Robot with 6-Axis Arm for Automatic Palletizing
A 6-axis industrial palletizing robot is a flexible, articulated arm designed to stack, arrange, and transfer packaged goods onto pallets. Its 6 independent motion joints let it adjust the gripper’s position and angle with high precision. As a fully automatic robotic palletizing system, it integrates with conveyors, sensors, and PLC controls to work seamlessly in production lines. It’s widely used in food & beverage, chemicals, logistics, and manufacturing sectors.
Specifications of 6-Axis Industrial Robot Palletizer
Parameter
Details
Robot Model
FL-2100 Robotic Palletizing System
Number Of Axes
6-axis
Effective Payload
210kg
Repeat Positioning Accuracy
±0.3mm
Working Radius
2674mm
Environment Temperature
0-45°C
Power Consumption
8kW
Body Weight
1110kg
Protection Grade
IP65 (body), IP43 (electric cabinet)

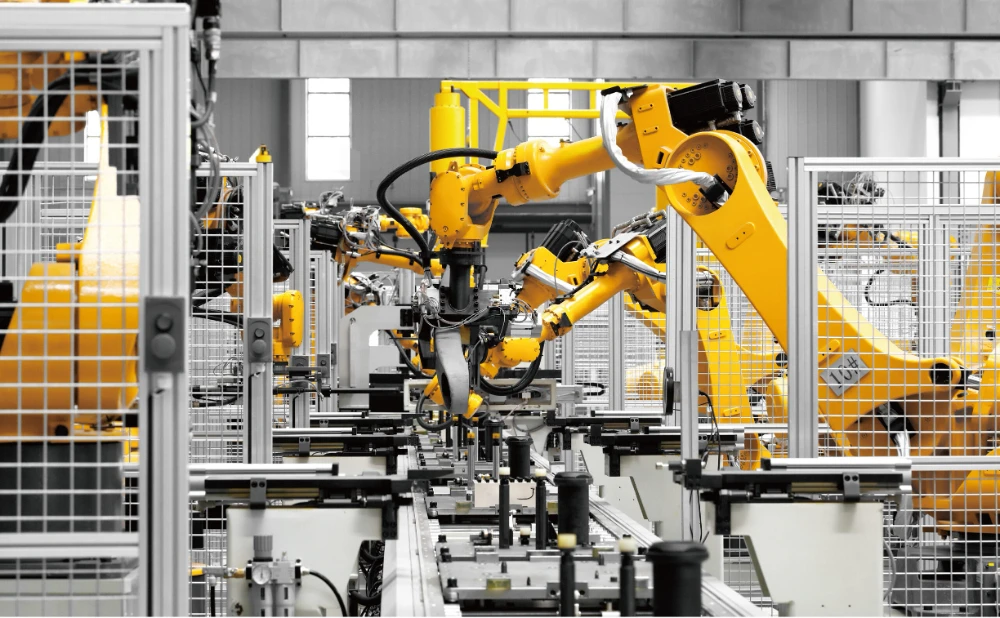

How Does A 6-Axis Robotic Palletizing System Work?
A 6-axis robotic palletizer mimics the flexibility of a human arm but with greater strength, consistency, and endurance. Each axis represents a point of rotation or movement, allowing the robot arm to position its end-of-arm tooling—such as a gripper or vacuum head. The process is simple: the robot picks up products from an incoming conveyor, follows a programmed path, and places them accurately onto a pallet in a predefined, stable pattern. This entire sequence is managed by an intuitive control system, allowing for easy programming and adjustment of stacking patterns for different products or pallet sizes.
Key Features of Fully Automatic Robotic Palletizing System
Flexible Motion Range: 6 independent axes (including 2 wrist joints) let the robot adjust the gripper’s posture freely, handling irregular or oddly-shaped packages that 4-axis models can’t manage.
Customizable Grippers: We support non-standard gripper customization design (for bags, boxes, cans, or bottles) to match your specific product type.
Compact Structure: The robotic palletizer occupies minimal floor space, fitting into narrow production areas while maintaining a large working radius (2674mm).
User-Friendly Operation: All controls run via a touch screen. You only need to set the pickup and placement points—no complex programming is required.
Advantages of Using An Industrial Palletizing Robot
Increased Efficiency
An automated palletizing robot works tirelessly at high speeds, handling heavy workloads far beyond human capability. This results in a faster palletizing process, increased throughput, and the ability to meet higher production demands consistently.
Cost Saving
Beyond labor savings, these palletizing robots are energy-efficient, consuming significantly less power (around 8kW) than traditional mechanical palletizers. Their simple design also means fewer parts, lower maintenance needs, and reduced spare part inventory costs.
Improved Safety
Automating the repetitive lifting and stacking of heavy items removes workers from potentially hazardous tasks. This significantly reduces the risk of strain injuries and creates a safer overall working environment.
Easy Integration
Our robotic palletizing systems are designed for flexible integration into your existing production layout. The system features centralized control from an intuitive operator panel, making setup, operation, and troubleshooting straightforward.
FAQ:
Q1. Can it handle multiple pallet sizes and complex stacking patterns?
Yes. Our robotic palletizing system can manage a wide variety of pallet sizes and execute thousands of unique product placement patterns in real-time
Q2. What does the implementation process involve?
We provide a turnkey solution: system design, electrical/mechanical engineering, programming, installation, and safety integration. We also modify facilities to connect them with your existing conveyors.
Q3. How quickly can I get a return on investment (ROI) for this robotic palletizer?
ROI is fast—driven by labor cost savings. For example, it can replace 5 workers per shift (across 3 shifts, 7 days a week), saving 12 roles total. You also cut costs for recruitment, wages, and injury liabilities.
About Foodline Machinery
Foodline Machinery is a machinery manufacturing company integrating public and trade, and has a development history of more than 20 years, specializing in the production of machinery. We offer comprehensive after-sales services, including technical support, maintenance guidance, and customization options to meet specific customer requirements. With a global customer base and a reputation for excellence, we strive to be your trusted partner in nut processing, helping you improve productivity and product quality while reducing operational costs. If you’re looking for a profitable and low-maintenance commercial solution, our industrial palletizing robot for sale is the perfect choice. Fill out the inquiry form today, and our team will send you a customized quote and video demo within 24 hours.
