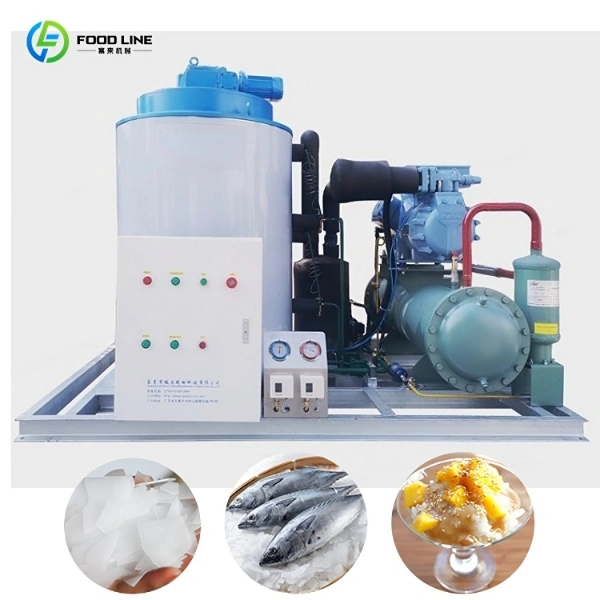

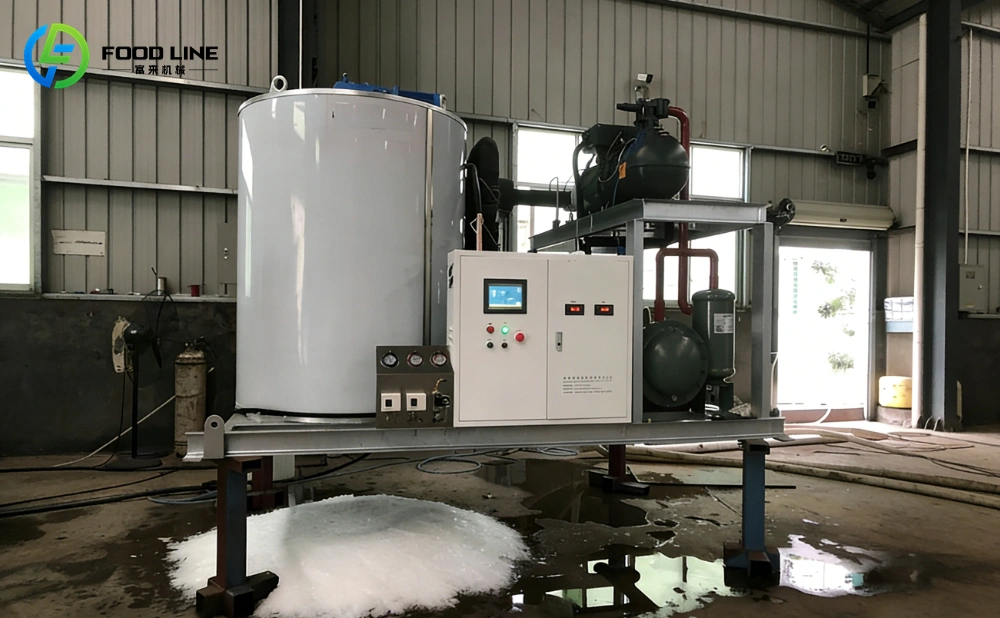

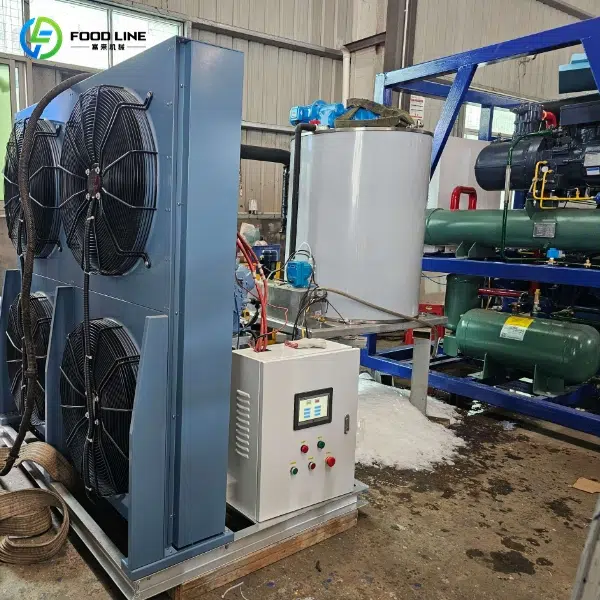

Our 5 ton air-cooled flake ice machine for sale is a high-performance industrial ice machine designed for food preservation and cooling needs. It delivers 5000kg of dry, clean flake ice daily, perfect for seafood processing, food factories, supermarkets, and concrete cooling projects. Feel free to ask for a quote if you want to buy a high-quality flake ice machine. Phone/WhatsApp: +8613838509601
Get Factory Quote | WhatsApp/Tel: +8613838509601

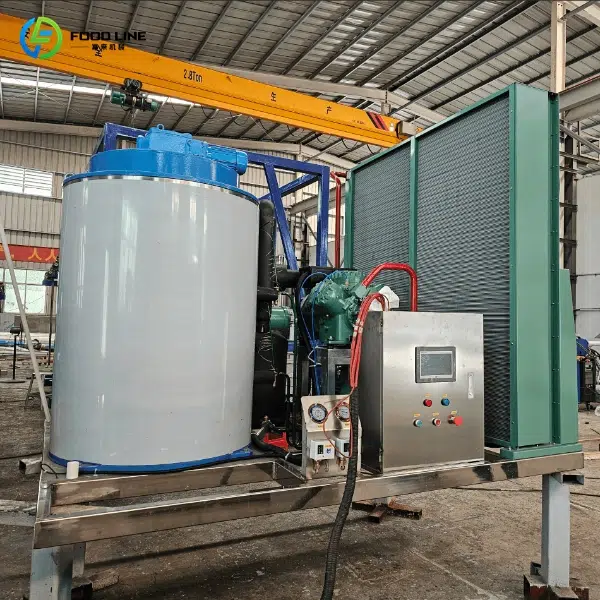

Specifications of 5 Ton Air-Cooled Flake Ice Machine
Product Name
5 Ton Air-Cooled Flake Ice Machine
Ice Output
5000kg/24h
Refrigeration Capacity
37.2KW
Evaporating Temperature
-20℃
Condensing Temperature
40℃
Installation Power
22.05KW
Compressor Input Power
20.2KW
Power Supply
3P-380V-50Hz
Refrigerant
R404A
Ice Thickness
1.5mm–2.2mm
Water Consumption
0.2 m³/h
Net Weight
1000kg
Dimensions (LWH)
2000mm x 1600mm x 1650mm
Get Factory Quote | WhatsApp/Tel: +8613838509601
Key Application Scenarios for Flake Ice Machine
This 5 ton air-cooled flake ice machine serves as a versatile solution across critical sectors, where rapid cooling and consistent ice supply are non-negotiable.
Seafood Processing & Fishery: The dry, non-clumping flake ice wraps tightly around fresh catch to maintain freshness during transport and storage, reducing product loss.
Food Processing Plants: It provides uniform cooling for meat, poultry, and dairy products, preserving texture and extending shelf life throughout production lines.
Concrete Cooling & Construction: It lowers concrete temperatures in large infrastructure projects, preventing thermal cracking and ensuring structural integrity.
Cold Chain Logistics: The industrial flake ice machine supports temperature stability in refrigerated trucks and warehouses, keeping goods fresh during long-distance transport.
Get Factory Quote | WhatsApp/Tel: +8613838509601
How Does the Machine Make Flake Ice?

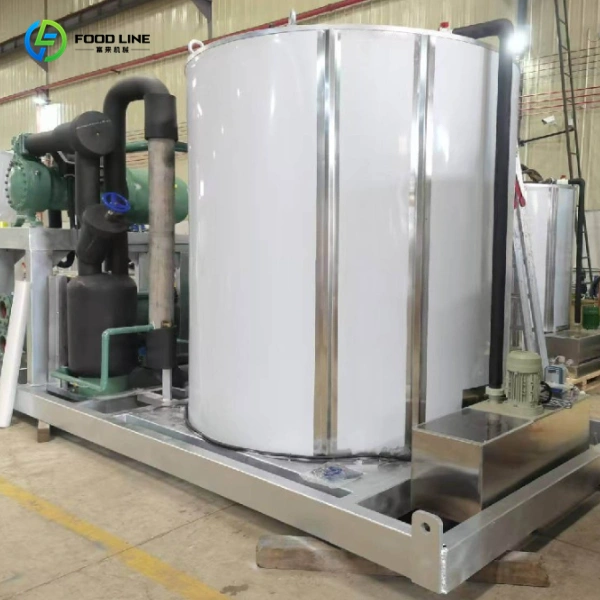

Our flake ice machine operates on a highly efficient and straightforward principle. First, a water pump evenly sprays clean water over the surface of a vertically mounted, refrigerated stainless steel cylinder. A thin layer of ice instantly forms on this super-cooled surface. Next, a rotating helical blade continuously scrapes off the ice layer. This process creates dry, sub-cooled flakes with a perfect crescent shape. Finally, the ice is effortlessly discharged from the outlet, ready for immediate use in your specific application.
Key Features of Air-Cooled Flake Ice Machine

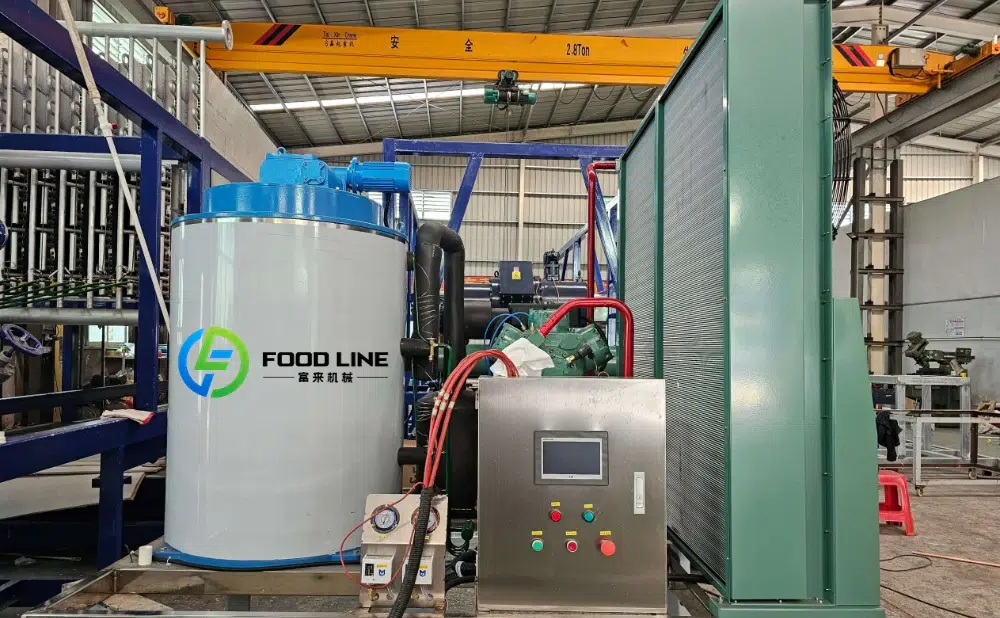

Air-Cooled Design: Air-cooled ice machine eliminates the need for a water tower, cutting installation costs and simplifying maintenance tasks.
Fully Integrated Design: This ready-to-use unit features a compact, one-piece design that simplifies installation and saves valuable floor space.
Smart Automated Control:This ice making systerm features full automatic control, so you can plug it in and start making ice without manual adjustments.
Corrosion-ResistantBuild: The flake ice machine uses stainless steel and anti-corrosion alloy materials for a service life of over 10 years.
Get Factory Quote | WhatsApp/Tel: +8613838509601
Advantages of Our Chipped Ice Maker for Sale
Wide Application: This industrial flake ice machine works for seafood processing, food factories, concrete cooling, and supermarket fresh food displays.
Easy Installation: The integrated design means you can set up the flake ice maker quickly, even in spaces with limited water access.
Stable Performance: Air-cooled technology maintains consistent ice production, even in high-temperature environments up to 40℃.
Cost Efficiency: Energy-saving components and low water use help you save money while enjoying reliable ice production.
FAQs of Flake Ice Maker
Q1. Is the flake ice suitable for direct contact with food?
Yes, our flake ice machine for sale produces food-grade ice that is clean, dry, and safe for food preservation and processing.
Q2. Can I choose the flake ice thickness?
Yes, ice thickness can be set between 1.5 mm and 2.2 mm based on your needs.
Q3. Do you offer other capacity flake ice maker models besides the 5T unit?

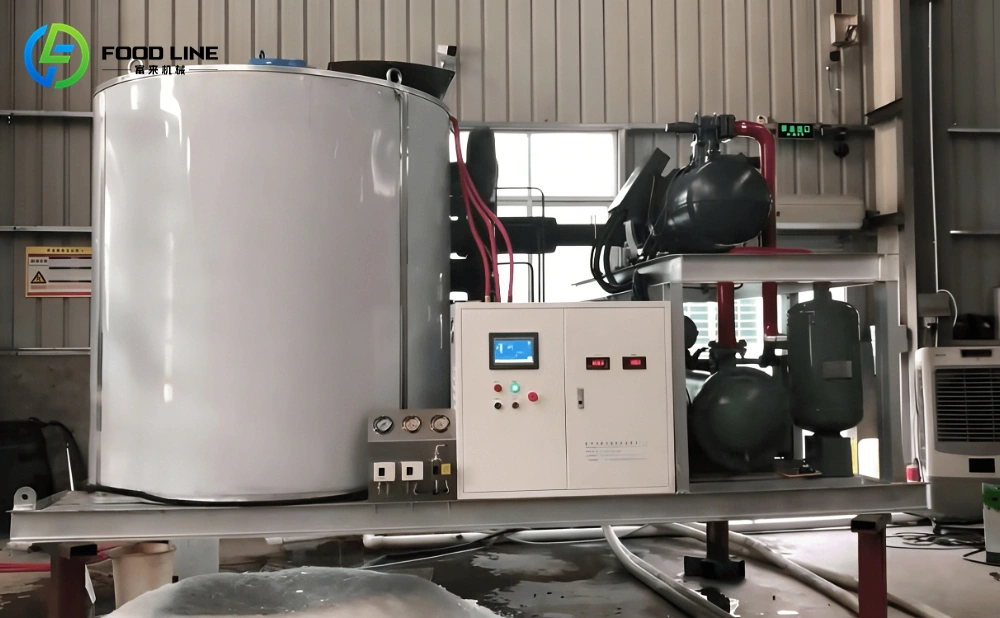

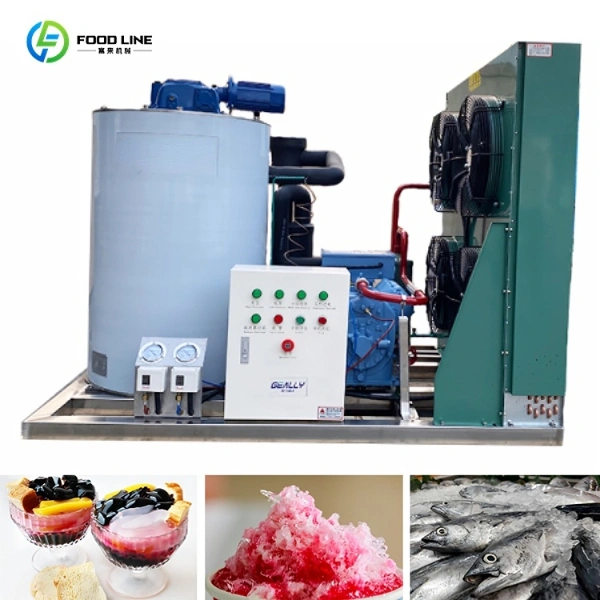

Yes, we provide a complete range to meet various needs. You can also buy flake ice machine models in 1T, 3T, 10T, and 20T daily outputs. Contact us for details!
Q4: What power supply is required to run this 5-ton flake ice maker?
This industrial flake ice machine requires a standard 3-phase power supply: 380V and 50Hz. If your facility has a different power supply, you can contact us for an inquiry.
Q5: Is the air-cooled flake ice machine easy to operate?
A: Yes, it features full automatic control. Just connect power and water, and the machine runs independently with no manual input.
Why Choose Foodline Machinery?
Foodline Machinery (Foodmax Machinery) is a machinery manufacturing company integrating public and trade, and has a development history of more than 20 years, specializing in the production of machinery. As a professional ice machine manufacturer, we provide high-quality ice-making solutions for various scenarios worldwide. Besides the flake ice machine for sale, we also specialize in block ice machines, tube ice makers, and cube ice machines, catering to diverse ice needs. We have successfully exported our ice making machines to Thailand, the US, Japan, Germany, Australia, and more Asian Countries. Our ice machines offer customizable sizes, perfectly suitable for small commercial operations (such as cafes, small restaurants) and large industrial facilities (including food processing plants, cold chain centers). With strict quality control, our products are stable and easy to maintain, supporting your business efficiently.
